Texas Instruments provides a recommended PCB layout in the application note SLUA645, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The UCC27425DGNR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure the thermal plane is connected to a heat sink or a large copper area on the PCB, and follow the thermal management guidelines in the datasheet and application notes.
The maximum allowable voltage on the input pins (IN and COM) is 6V, which is higher than the recommended operating voltage of 5V. However, exceeding 6V can cause damage to the device. Ensure the input voltage is within the recommended range to prevent damage.
The UCC27425DGNR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Ensure the device is operated within the recommended temperature range (–40°C to 125°C) and follow the thermal management guidelines to prevent overheating.
Texas Instruments provides a troubleshooting guide in the application note SLUA646, which includes steps to identify and resolve common issues such as output voltage errors, oscillations, and thermal shutdown. Additionally, use oscilloscopes and other diagnostic tools to analyze the device's behavior and identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27425DGNR Overview

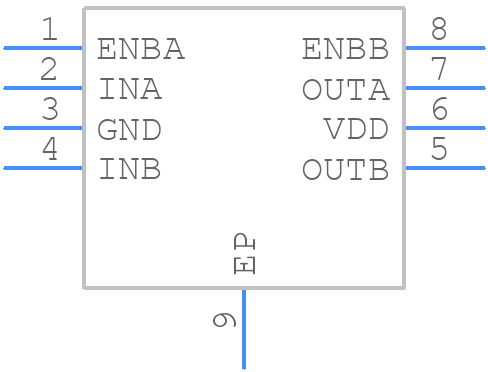

Use the download button to access the UCC27425DGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
