UCC27526DSDT - Texas Instruments

Description: Texas Instruments UCC27526DSDT Dual MOSFET Power Driver, 5A 8-Pin, SON

Download ECAD Model

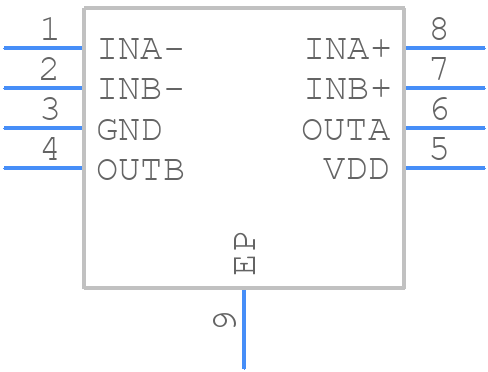

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

UCC27526DSDT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSD0008B
click to zoom

3D Models

UCC27526DSDT - Texas Instruments  - 3D model - Small Outline No-lead - DSD0008B
click to zoom

UCC27526DSDT Details

  • Manufacturer Part Number:

    UCC27526DSDT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    HVSON, SOLCC8,.12,25

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.9

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    5 A

  • Output Peak Current Limit-Nom:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    4.5/18 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Subcategory:

    MOSFET Drivers

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.023 µs

  • Turn-on Time:

    0.023 µs

  • Width:

    3 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

UCC27526DSDT Overview

Use the download button to access the UCC27526DSDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27, or try a keyword search, such as MOSFET Drivers
