- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UCC27614DSGR
- Part Number UCC27614DSGR
- Manufacturer Texas Instruments
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - DSG
- Released Date Nov 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UCC27614DSGR Details
-
Manufacturer Part Number:
UCC27614DSGR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
High Side Driver:
NO
-
Input Characteristics:
STANDARD
UCC27614DSGR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value that ensures the desired ripple voltage and current. TI's Capacitor Selection Tool can also be used to find suitable capacitors.
-
The maximum junction temperature (Tj) of the UCC27614DSGR is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
-
Yes, the UCC27614DSGR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices and is also suitable for industrial and medical applications that require high reliability.
-
TI provides a troubleshooting guide in the application note SLUA624, which covers common issues and their solutions. Additionally, the TI E2E forum and technical support team can provide further assistance and guidance.
Trust Checks
Community Provided
System Verified
Community Approved
UCC27614DSGR Overview

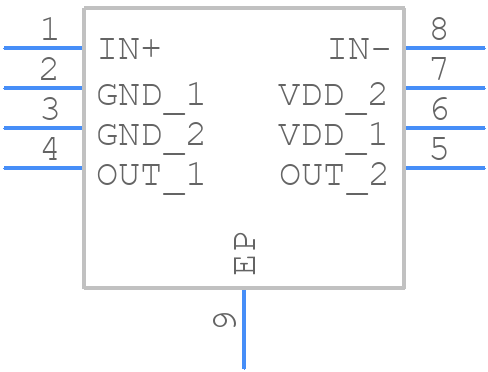

Use the download button to access the UCC27614DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC27,
or try a keyword search, such as MOSFET Drivers
