The UCC28019AD is a high-frequency device, so it's crucial to follow good PCB layout practices to minimize noise and EMI. TI recommends placing the device close to the power stage, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, decoupling capacitors should be placed close to the device's power pins.
The choice of external components, such as the bootstrap capacitor, current sense resistor, and output filter components, depends on the specific application requirements. TI provides guidelines and calculations in the datasheet and application notes to help engineers select the right components for their design.
The UCC28019AD can operate up to 1 MHz, but the maximum operating frequency depends on the specific application and the design of the power stage. Engineers should consult the datasheet and application notes for guidance on selecting the optimal switching frequency for their design.
The UCC28019AD has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the calculations required to set the overcurrent threshold.
Yes, the UCC28019AD can be used in synchronous rectification topologies. However, engineers should ensure that the device is properly configured and that the synchronous rectifier is properly sized and controlled to avoid shoot-through currents and other issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28019AD Overview

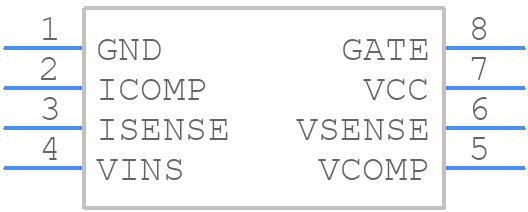

Use the download button to access the UCC28019AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
