UCC28019DR - Texas Instruments

Description: 8-Pin Continuous Conduction Mode (CCM) PFC Controller

Download UCC28019DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

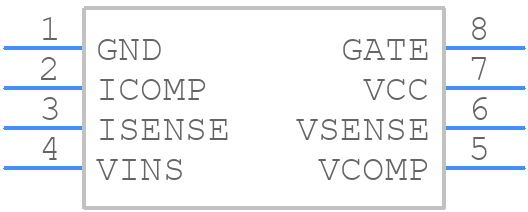

UCC28019DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC28019DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
UCC28019DR - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

UCC28019DR Details

  • Manufacturer Part Number:

    UCC28019DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    22 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    65 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UCC28019DR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC28019DR involves keeping the high-frequency switching nodes (e.g., SW pin) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
  • The choice of external components depends on the specific application requirements. TI provides a component selection guide in the datasheet and application notes. Additionally, the WEBENCH online design tool can be used to simplify the component selection process.
  • The UCC28019DR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's specifications at high temperatures.
  • The UCC28019DR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the source of the high-side FET and the drain of the low-side FET. The device will detect overcurrent conditions and shut down if the current exceeds the threshold set by Rs.
  • Yes, the UCC28019DR is suitable for synchronous rectification topologies. The device's high-side and low-side FET drivers can be used to drive external FETs in a synchronous rectifier configuration, improving efficiency and reducing power losses.
