Texas Instruments provides a recommended PCB layout in the UCC28019DRG4 datasheet, but it's also important to follow general guidelines for high-frequency switching converter layouts, such as keeping the power stage components close together, using a solid ground plane, and minimizing loop areas.
The selection of external components such as the inductor, capacitor, and resistors depends on the specific application requirements, such as output voltage, current, and switching frequency. Texas Instruments provides a component selection guide in the datasheet, and online tools such as the TI Power Stage Designer can also be used to aid in component selection.
The UCC28019DRG4 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. It's important to ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
Troubleshooting issues with the UCC28019DRG4 can be challenging, but common issues include incorrect component selection, poor PCB layout, and inadequate thermal design. Texas Instruments provides a troubleshooting guide in the datasheet, and online resources such as the TI E2E forum can also be used to get help from experienced engineers.
Yes, the UCC28019DRG4 is compatible with lead-free soldering. Texas Instruments ensures that all its products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which prohibits the use of lead and other hazardous substances in electronic components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28019DRG4 Overview

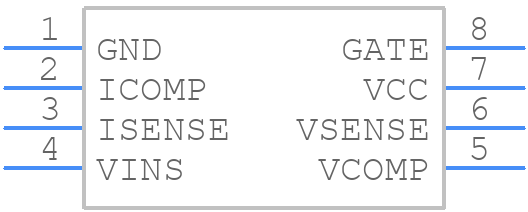

Use the download button to access the UCC28019DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
