The recommended layout and placement for the UCC28051DRG4 involves keeping the high-frequency switching nodes (e.g., SW pin) away from sensitive analog nodes (e.g., VSENSE pin), using a solid ground plane, and minimizing the loop area of the high-current paths. TI provides a layout guide in the application note SLUA689.
The selection of external components such as the input capacitor, output capacitor, and inductor depends on the specific application requirements. TI provides a component selection guide in the datasheet and application notes. Additionally, the WEBENCH Power Designer tool can be used to simplify the component selection process.
The maximum junction temperature (Tj) that the UCC28051DRG4 can operate at is 150°C. However, it is recommended to keep the junction temperature below 125°C for reliable operation and to ensure the device meets its specifications.
To troubleshoot issues with the UCC28051DRG4, start by verifying the PCB layout and component selection. Check for proper decoupling, filtering, and grounding. Use an oscilloscope to measure the voltage and current waveforms at the input, output, and switching nodes. Consult the datasheet, application notes, and TI's support resources for guidance on troubleshooting specific issues.
Yes, the UCC28051DRG4 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a robust process that ensures high reliability and low defect rates. However, it is essential to follow proper design, testing, and validation procedures to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28051DRG4 Overview

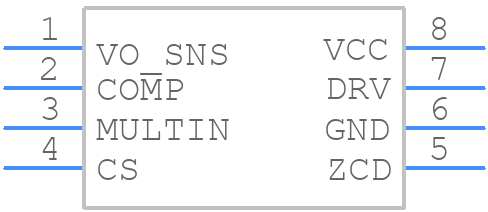

Use the download button to access the UCC28051DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
