A good PCB layout for the UCC28056CDBVR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended layout in the datasheet and application notes.
Choose external components based on the specific requirements of your application, such as output voltage, current, and frequency. TI provides guidelines and equations in the datasheet to help with component selection. You can also use online tools and simulation software to aid in the design process.
Common pitfalls to avoid include: not following proper PCB layout guidelines, not using adequate input and output filtering, not providing sufficient decoupling capacitance, and not ensuring that the device is operated within its recommended operating conditions.
To troubleshoot issues, start by verifying that the device is operated within its recommended operating conditions. Check for proper PCB layout, component selection, and decoupling. Use oscilloscopes and other measurement tools to identify issues such as voltage spikes, oscillations, or excessive heat. Consult the datasheet, application notes, and TI's support resources for guidance.
Yes, the UCC28056CDBVR can generate significant heat during operation. Ensure good thermal conduction by using a heat sink or thermal pad, and follow TI's guidelines for thermal design. Monitor the device's junction temperature (TJ) to prevent overheating, which can reduce the device's lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28056CDBVR Overview

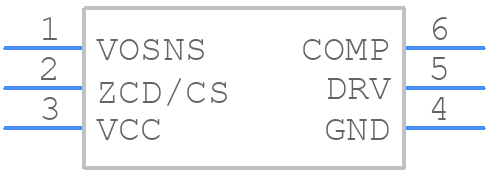

Use the download button to access the UCC28056CDBVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
