The recommended layout and placement for the UCC28086DR involves keeping the high-frequency components (such as the switching node and the bootstrap capacitor) close to the IC, and using a solid ground plane to reduce EMI. The datasheet provides a recommended layout diagram, but it's also recommended to consult the TI application note 'UCC28086 Layout and Thermal Considerations' for more detailed guidance.
The bootstrap capacitor value depends on the specific application requirements, such as the switching frequency, output voltage, and current. A general rule of thumb is to choose a capacitor with a value between 10nF to 100nF, and a voltage rating that is at least 1.5 times the output voltage. The datasheet provides a formula to calculate the minimum bootstrap capacitor value, but it's also recommended to consult the TI application note 'UCC28086 Bootstrap Capacitor Selection' for more detailed guidance.
The UCC28086DR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. It's essential to ensure that the device does not exceed the maximum TJ to prevent damage or malfunction. The datasheet provides thermal characteristics and thermal management guidelines to help designers ensure reliable operation within the specified temperature range.
To ensure reliable start-up and shutdown of the UCC28086DR, it's essential to follow the recommended start-up and shutdown sequences outlined in the datasheet. This includes ensuring that the input voltage is within the specified range, the enable pin is properly driven, and the output voltage is monitored to prevent overvoltage or undervoltage conditions. Additionally, it's recommended to add external circuitry, such as a soft-start circuit, to prevent inrush currents and ensure a smooth start-up.
To minimize EMI and noise in UCC28086DR-based designs, it's essential to follow good PCB layout practices, such as keeping the switching node and high-frequency components away from sensitive analog circuits, using a solid ground plane, and adding EMI filters, such as common-mode chokes and capacitors, to the input and output lines. Additionally, it's recommended to use shielding and grounding techniques to reduce radiated emissions and conducted noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28086DR Overview

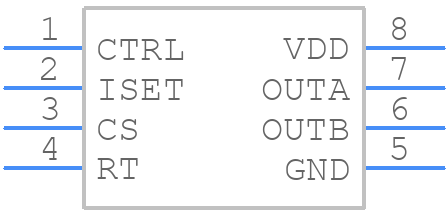

Use the download button to access the UCC28086DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
