Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as output voltage, current, and power level. Texas Instruments provides a design tool, the Power Stage Designer (PSD), which can help engineers select the optimal components and design the power stage. Additionally, the datasheet provides guidelines and equations for component selection.
The UCC2819APWR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly cooled and thermal management is implemented to prevent overheating.
The UCC2819APWR has built-in OVP and UVP features, but engineers can also implement external protection circuits using resistors, zener diodes, and comparators. The application note SLUA433 provides examples and guidelines for implementing OVP and UVP circuits.
The recommended startup sequence is to first apply the input voltage (VIN) and then the enable signal (EN). This ensures that the internal bias voltage is established before the device is enabled. The datasheet provides a detailed startup sequence diagram and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2819APWR Overview

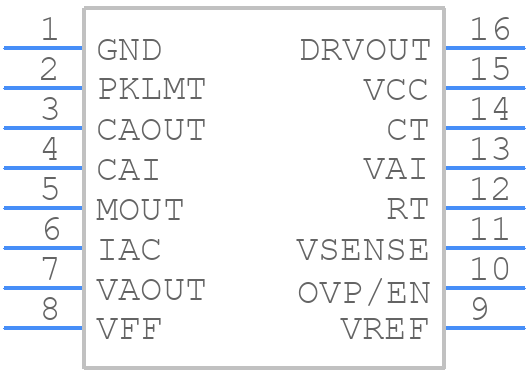

Use the download button to access the UCC2819APWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
