A good PCB layout for the UCC28220DR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
Optimizing the compensation network for the UCC28220DR involves selecting the right values for the compensation components (R1, R2, C1, and C2) based on the specific application requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the desired transient response and stability margins.
The maximum output current capability of the UCC28220DR is 2A, but this can be limited by the thermal design and the maximum junction temperature of 150°C. It's essential to ensure that the device is properly heat-sinked and that the thermal design is adequate to handle the maximum output current.
Yes, the UCC28220DR can be used in a synchronous rectification topology. In this configuration, the device can be used as a high-side driver, and an external low-side FET can be used to implement synchronous rectification. This can improve efficiency and reduce power losses.
To protect the UCC28220DR from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a voltage monitor IC to detect and respond to abnormal voltage conditions. Additionally, using a TVS diode or a zener diode can help protect the device from voltage transients and spikes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28220DR Overview

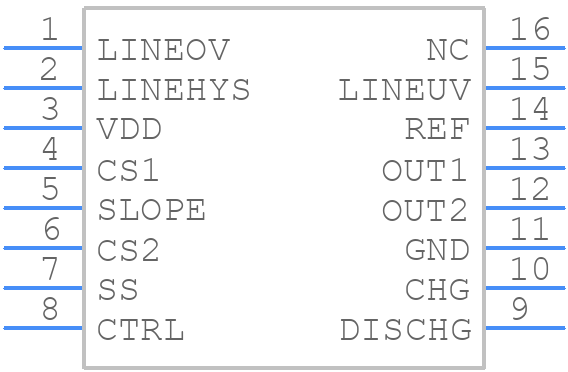

Use the download button to access the UCC28220DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
