Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and ensure reliable operation.
The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and switching frequency. Texas Instruments provides a component selection guide in the application note SLUA434, which includes guidelines for selecting input filter capacitors, output filter inductors, and other external components.
The maximum junction temperature of the UCC28220PW is 150°C. To ensure that the device stays within the safe operating range, it is recommended to follow the thermal design guidelines in the datasheet, including the use of a heat sink and thermal interface material, and to monitor the device temperature using the internal thermal shutdown feature.
Texas Instruments provides a troubleshooting guide in the application note SLUA435, which includes common issues and their solutions, such as oscillations, instability, and overvoltage protection. The guide also provides guidelines for debugging and testing the device.
Yes, the UCC28220PW is compatible with lead-free soldering. Texas Instruments recommends following the lead-free soldering guidelines in the application note SLUA436, which includes recommended soldering temperatures, times, and profiles.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28220PW Overview

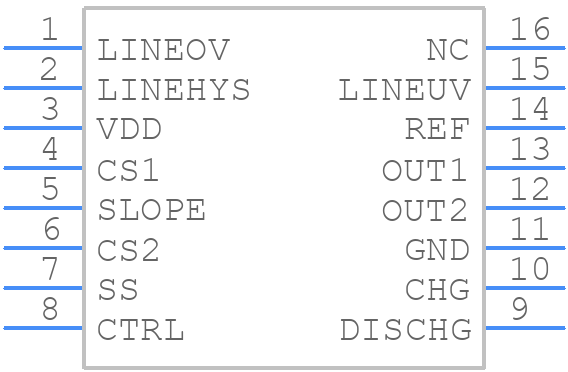

Use the download button to access the UCC28220PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
