Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and switching frequency. Texas Instruments provides a component selection guide in the datasheet and application notes, which can be used as a starting point. Additionally, online tools such as the TI Power Stage Designer can be used to simplify the component selection process.
The maximum junction temperature (Tj) of the UCC28220QPWRQ1 is 150°C. However, it is recommended to operate the device at a lower temperature to ensure reliability and minimize thermal stress. A thermal derating curve is provided in the datasheet to help designers estimate the maximum power dissipation at different temperatures.
Troubleshooting issues with the UCC28220QPWRQ1 requires a systematic approach, including checking the PCB layout, component values, and soldering quality. Texas Instruments provides a troubleshooting guide in the application note SLUA434, which includes common issues and their solutions. Additionally, online resources such as the TI E2E forum can be used to seek help from experienced engineers and TI experts.
Yes, the UCC28220QPWRQ1 is compatible with lead-free soldering processes. The device is manufactured using a lead-free process, and the package is designed to withstand the higher temperatures associated with lead-free soldering. However, it is recommended to follow the recommended soldering profile and guidelines provided in the datasheet to ensure reliable assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28220QPWRQ1 Overview

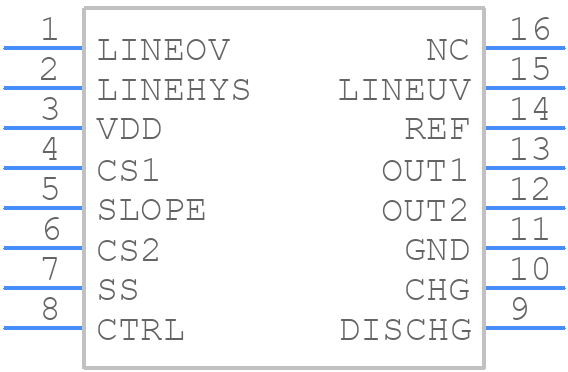

Use the download button to access the UCC28220QPWRQ1 schematic symbol, PCB footprint, and 3D model.
