Texas Instruments provides a recommended PCB layout in the UCC28250PWR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
The UCC28250PWR datasheet provides guidelines for selecting external components such as the input filter, output filter, and feedback network components. Additionally, Texas Instruments offers a power supply design tool, WEBENCH, which can help engineers select the optimal components for their specific application.
The UCC28250PWR has a maximum ambient temperature rating of 85°C, but it's essential to consider the thermal management of the device and the overall system to ensure reliable operation. The device's junction temperature (TJ) should not exceed 150°C.
Yes, the UCC28250PWR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the required reliability standards.
Texas Instruments provides a troubleshooting guide for the UCC28250PWR, which covers common issues such as startup problems, oscillations, and output voltage errors. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug the device and identify the root cause of the issue.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC28250PWR Overview

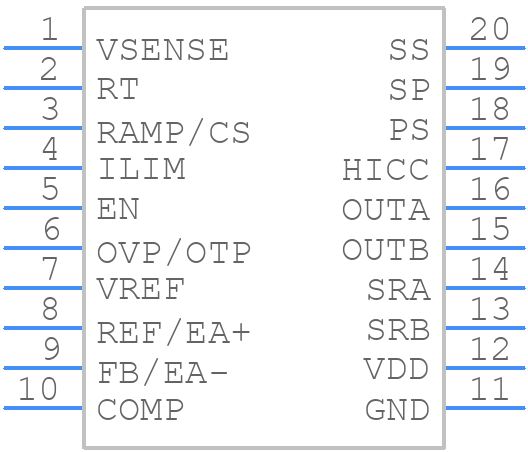

Use the download button to access the UCC28250PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
