Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as output voltage, current, and frequency. Texas Instruments provides a design tool, the Power Stage Designer (PSD), which can help engineers select the optimal components and design the power stage. Additionally, the datasheet provides guidelines and equations for component selection.
The maximum junction temperature (Tj) of the UCC28251PW is 150°C. To ensure the device stays within the safe operating range, engineers should follow the thermal management guidelines in the datasheet, including providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation.
Texas Instruments provides a troubleshooting guide in the application note SLUA434, which covers common issues and their solutions. Additionally, engineers can use simulation tools, such as SPICE models, to analyze and debug their design. It's also recommended to follow the design guidelines and recommendations in the datasheet to minimize the risk of oscillations and instability.
Yes, the UCC28251PW is compatible with lead-free soldering. Texas Instruments recommends following the JEDEC standard J-STD-020D for lead-free soldering, which specifies the soldering conditions and temperature profiles. The datasheet also provides guidelines for soldering and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28251PW Overview

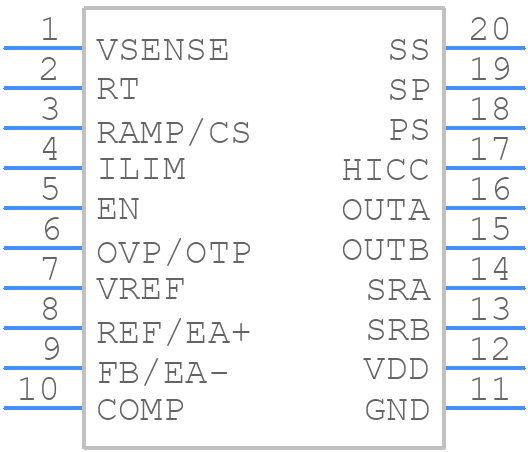

Use the download button to access the UCC28251PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
