Texas Instruments provides a recommended PCB layout in the application note SLUP133, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output power, and operating frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Additionally, consider the capacitor's ESR, ripple current rating, and temperature rating.
The maximum junction temperature (Tj) for the UCC284DPTR-5 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
Yes, the UCC284DPTR-5 is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using automotive-grade processes. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot oscillations or instability issues, start by checking the PCB layout, component values, and soldering quality. Ensure that the input and output capacitors are properly selected and placed. Verify that the feedback loop is properly compensated, and the voltage regulator is stable. Use an oscilloscope to measure the output voltage and current waveforms, and consult the application notes and datasheet for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC284DPTR-5 Overview

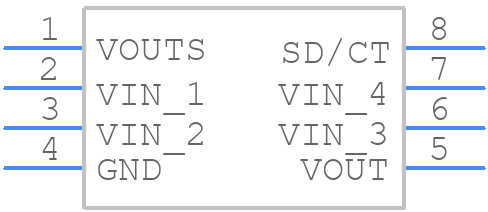

Use the download button to access the UCC284DPTR-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Linear Regulator ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
