CAN ALSO BE PROGRAMMED FOR CURRENT MODE AND VOLTAGE MODE
Analog IC - Other Type:
POWER FACTOR CONTROLLER WITH POST REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
18 V
Input Voltage-Min:
10.3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
12.8 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
2.65 mm
Supply Current-Max (Isup):
4 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
200 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
7.5 mm
UCC28500DW Frequently Asked Questions (FAQs)
A good PCB layout for the UCC28500DW involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
When selecting a transformer for the UCC28500DW, consider the output power, voltage, and current requirements. Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimal losses.
The UCC28500DW is rated for operation up to 85°C ambient temperature, but derating is required for temperatures above 70°C. Ensure proper thermal management, such as heat sinking and airflow, to maintain reliable operation.
While the UCC28500DW is primarily designed for isolated topologies, it can be used in non-isolated configurations with proper design considerations. However, this may require additional components and careful layout to ensure safe operation.
To troubleshoot oscillations or instability issues, check the PCB layout, component values, and transformer design. Ensure that the input and output stages are properly decoupled, and that the feedback loop is stable. Consult the datasheet and application notes for guidance on stability analysis and compensation techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28500DW Overview

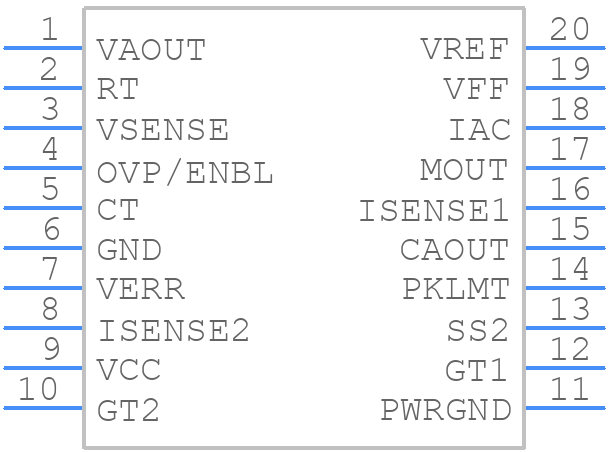

Use the download button to access the UCC28500DW schematic symbol, PCB footprint, and 3D model.
