Texas Instruments provides a recommended PCB layout in the application note SLUA689, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as output power, voltage, and frequency. Texas Instruments provides a transformer selection guide in the application note SLUA691, which includes guidelines for calculating the transformer's turns ratio, inductance, and core size.
The UCC28512DWR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Texas Instruments provides a troubleshooting guide in the application note SLUA692, which includes steps to identify and resolve common issues, such as oscillations, instability, and output voltage errors. The guide also provides tips for debugging and optimizing the design.
Yes, the UCC28512DWR is designed to meet the requirements of high-reliability and safety-critical applications, such as aerospace, automotive, and industrial control systems. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28512DWR Overview

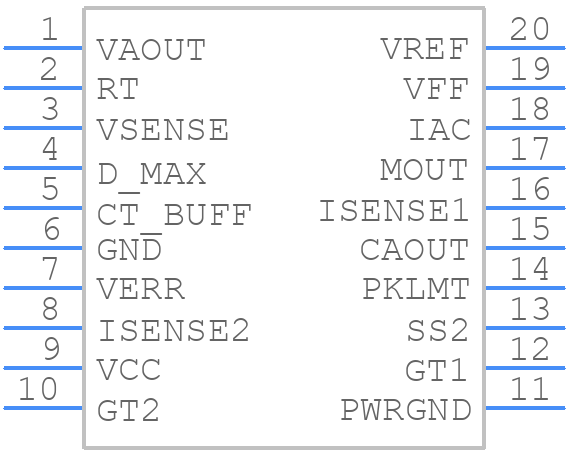

Use the download button to access the UCC28512DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
