UCC28600D - Texas Instruments

Description: 8-Pin Quasi Resonant Flyback Green Mode Controller

Download UCC28600D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

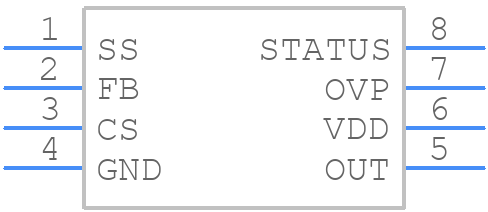

Symbol
UCC28600D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC28600D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
UCC28600D - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

UCC28600D Details

  • Manufacturer Part Number:

    UCC28600D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RESONANT CONTROL TECHNIQUE IS ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    21 V

  • Input Voltage-Min:

    9.3 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    130 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UCC28600D Frequently Asked Questions (FAQs)

  • TI recommends a compact layout with the UCC28600D placed close to the input capacitors and the output inductor. The input capacitors should be placed as close as possible to the VIN pin, and the output inductor should be placed close to the SW pin. Additionally, a solid ground plane and a separate power plane can help reduce EMI.
  • The compensation network can be optimized by using the TI-provided compensation calculator tool or by following the guidelines in the datasheet. The goal is to achieve a stable loop gain of around 10-15 dB at the crossover frequency. The compensation network should be adjusted to achieve a phase margin of at least 45 degrees.
  • The maximum allowed voltage on the EN pin is 6V. To ensure it is not exceeded, a voltage divider or a zener diode can be used to limit the voltage to the EN pin. Additionally, a pull-down resistor can be used to ensure the EN pin is not floating.
  • The UCC28600D has a built-in OCP feature that limits the output current to prevent damage. To handle OCP, the designer should ensure that the output current is monitored and limited to a safe value. The OCP threshold can be adjusted by changing the value of the RSENSE resistor.
  • TI recommends using a low-ESR ceramic capacitor with a value of at least 10uF and a voltage rating of at least 1.5 times the input voltage. The capacitor should be placed as close as possible to the VIN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCC28600D Overview

Use the download button to access the UCC28600D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
