A good PCB layout for the UCC28610DR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
When selecting a transformer for the UCC28610DR, consider the output power, voltage, and current requirements. Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimal losses.
The UCC28610DR is rated for operation up to 85°C ambient temperature, but derating is required for temperatures above 70°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
The UCC28610DR has a built-in overcurrent protection feature. Connect a sense resistor in series with the output, and the IC will detect overcurrent conditions and shut down the output. You can also add external circuitry for more advanced overcurrent protection schemes.
While the UCC28610DR is primarily designed for isolated topologies, it can be used in non-isolated configurations with some modifications. However, this may require additional components and design considerations to ensure safe and reliable operation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC28610DR Overview

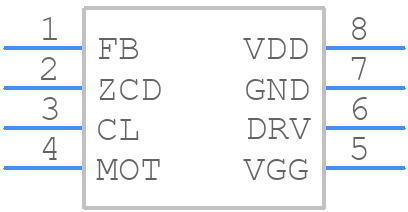

Use the download button to access the UCC28610DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Other Signal Circuits
