A good PCB layout for the UCC28631DR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
When selecting a transformer for the UCC28631DR, consider the output power, voltage, and current requirements. Choose a transformer with a suitable turns ratio, core material, and winding configuration to ensure efficient energy transfer and minimize losses.
The UCC28631DR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the thermal design and heat sinking to ensure the IC remains within its specified operating temperature range.
While the UCC28631DR is primarily designed for isolated flyback converters, it can be used in non-isolated topologies with some modifications. However, this may require additional components and design considerations to ensure safe and efficient operation.
To minimize standby power consumption, use a low-ESR input capacitor, optimize the transformer design, and consider using a low-power mode or burst-mode operation. Additionally, ensure that the IC is properly configured for low-power operation and that the system is designed to minimize idle-mode losses.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28631DR Overview

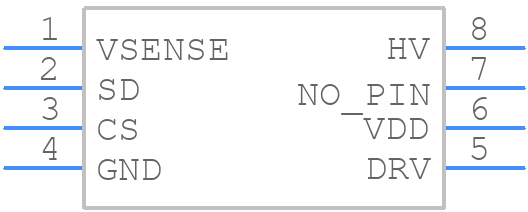

Use the download button to access the UCC28631DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
