Texas Instruments provides a recommended PCB layout in the UCC28632D evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The UCC28632D datasheet provides guidelines for transformer selection, including recommended turns ratios, inductance values, and core materials. Additionally, Texas Instruments offers a transformer selection tool on their website to help engineers choose the right transformer for their specific application.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the device can operate up to 150°C with derating. However, it's essential to consider the thermal management and cooling requirements to ensure reliable operation within the desired temperature range.
The UCC28632D has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The datasheet provides a detailed example of how to implement OVP, including the recommended resistor values and voltage thresholds.
While the UCC28632D is primarily designed for isolated flyback converters, it can be used in non-isolated topologies such as buck or boost converters. However, this requires careful consideration of the device's operating conditions, output voltage, and current ratings to ensure safe and reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28632D Overview

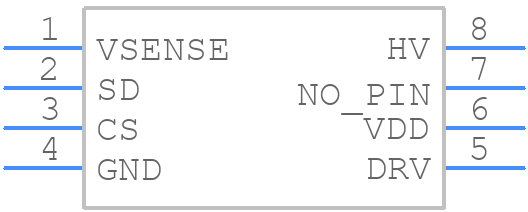

Use the download button to access the UCC28632D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
