Texas Instruments provides a recommended PCB layout in the UCC28633DR evaluation module (EVM) documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
The transformer selection depends on the specific application requirements, such as output power, voltage, and frequency. Texas Instruments provides a transformer selection guide in the UCC28633DR datasheet, which includes formulas and guidelines for calculating the transformer's turns ratio, inductance, and core size. Additionally, TI offers a transformer design tool to help with the selection process.
The UCC28633DR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. It's essential to ensure that the device operates within the specified temperature range to prevent overheating and ensure reliable operation.
The UCC28633DR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold is set by an external resistor divider network. TI provides a detailed explanation of the OVP implementation in the datasheet and application notes.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as X5R or X7R, with a value of 10uF to 22uF. The capacitor value depends on the input voltage ripple and noise requirements. TI provides guidelines for input capacitor selection in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28633DR Overview

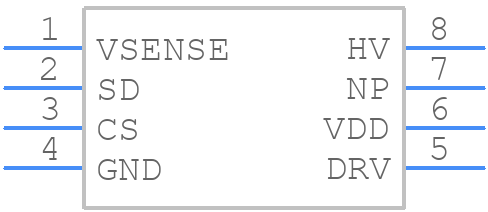

Use the download button to access the UCC28633DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
