Texas Instruments provides a recommended PCB layout in the UCC28634D datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the switching node (SW) away from sensitive nodes, using a solid ground plane, and minimizing loop areas.
When selecting components for the UCC28634D, consider the operating frequency, output power, and input voltage. Choose components with suitable voltage and current ratings, and consider factors like ESR, ESL, and Q-factor. Texas Instruments also provides a component selection guide in the datasheet.
The maximum junction temperature for the UCC28634D is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
To troubleshoot issues with the UCC28634D, start by checking the input voltage, output voltage, and current. Use an oscilloscope to observe the waveforms and look for signs of oscillation, overvoltage, or undervoltage. Check the PCB layout and component selection, and consult the datasheet and application notes for guidance.
Yes, the UCC28634D is compatible with lead-free soldering. Texas Instruments uses lead-free packaging and the device is designed to withstand the higher temperatures associated with lead-free soldering processes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28634D Overview

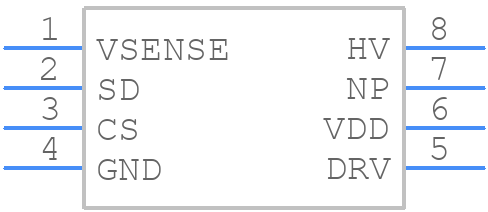

Use the download button to access the UCC28634D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
