A good PCB layout for the UCC28730QDRQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
Optimizing the compensation network involves selecting the right values for the compensation components (R1, R2, C1, and C2) based on the specific application requirements. TI provides a compensation calculator tool and application notes to help with this process.
The UCC28730QDRQ1 is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider thermal management and derating in the system design.
Yes, the UCC28730QDRQ1 can be used in a synchronous rectification topology. However, it requires careful design and layout considerations to ensure proper operation and minimize losses. TI provides application notes and reference designs to help with this implementation.
To ensure the UCC28730QDRQ1 meets safety and regulatory standards, follow the guidelines and recommendations provided in the datasheet and application notes. Additionally, consult with relevant industry standards (e.g., UL, IEC, and EN) and perform necessary testing and certification for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28730QDRQ1 Overview

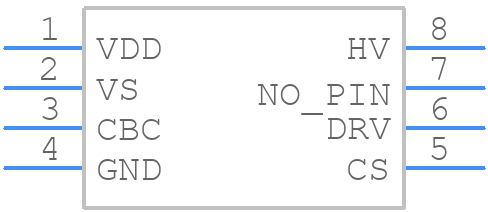

Use the download button to access the UCC28730QDRQ1 schematic symbol, PCB footprint, and 3D model.
