The UCC28740D requires careful layout and placement to ensure proper operation. TI recommends placing the IC close to the transformer, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB is recommended, with the top layer for signals, the second layer for power, the third layer for ground, and the bottom layer for power.
To optimize the UCC28740D for low standby power consumption, ensure that the IC is in the low-power mode (LPM) during standby. This can be achieved by setting the EN pin low, reducing the switching frequency, and minimizing the voltage on the VCC pin. Additionally, use a low-quiescent-current transformer and optimize the transformer design for low standby power.
The UCC28740D has a high power density, so thermal design is critical. Ensure good airflow, use a heat sink if necessary, and optimize the PCB design for thermal performance. The IC's thermal pad should be connected to a solid ground plane, and the PCB should have thermal vias to dissipate heat.
To troubleshoot issues with the UCC28740D, start by checking the power supply voltage, input voltage, and output voltage. Verify that the IC is properly configured and that the transformer is properly designed and wound. Use an oscilloscope to check for oscillations or instability, and consult the datasheet and application notes for guidance on troubleshooting common issues.
The UCC28740D is a high-frequency switching converter, so EMI and EMC are critical considerations. Ensure that the PCB design minimizes radiated emissions, use a shielded transformer, and add EMI filters as necessary. Follow good layout practices, such as keeping high-frequency signals away from sensitive nodes, and use a common-mode choke to reduce common-mode noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28740D Overview

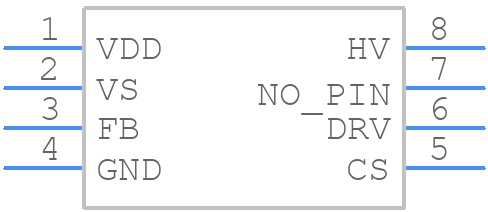

Use the download button to access the UCC28740D schematic symbol, PCB footprint, and 3D model.
