A good PCB layout for the UCC28780DR involves keeping the high-frequency switching nodes (e.g., SW node) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the datasheet and application notes.
Optimizing the compensation network involves selecting the right values for the compensation components (R, C, and L) based on the specific application requirements. TI provides a compensation design tool and guidelines in the datasheet and application notes to help with this process.
The maximum allowed voltage on the VIN pin of the UCC28780DR is 28V, but it's recommended to keep it below 24V for reliable operation. Exceeding this voltage can damage the device.
To ensure the UCC28780DR operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure to follow the recommended operating conditions and thermal management guidelines in the datasheet.
The EN (enable) pin is used to enable or disable the UCC28780DR. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing, fault detection, or other system-level control functions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28780DR Overview

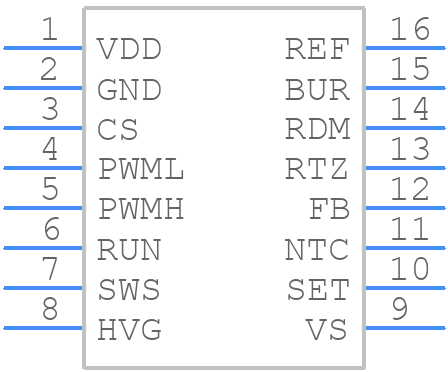

Use the download button to access the UCC28780DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
