Texas Instruments provides a recommended PCB layout in the application note SLUA689, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as input voltage, output voltage, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA690, which includes a list of recommended transformers and guidelines for custom transformer design.
The maximum operating temperature range for UCC28782ADRTWR is -40°C to 125°C, as specified in the datasheet. However, the device can operate at a higher temperature range with derating, and the maximum junction temperature is 150°C.
The UCC28782ADRTWR has built-in OVP and UVP features, which can be enabled by connecting the OVP and UVP pins to the input voltage and a voltage reference, respectively. The device will shut down if the input voltage exceeds the OVP threshold or falls below the UVP threshold.
The recommended input capacitor value and type depend on the specific application requirements, such as input voltage and ripple current. A general guideline is to use a low-ESR ceramic capacitor with a value of 10uF to 22uF, as specified in the application note SLUA689.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28782ADRTWR Overview

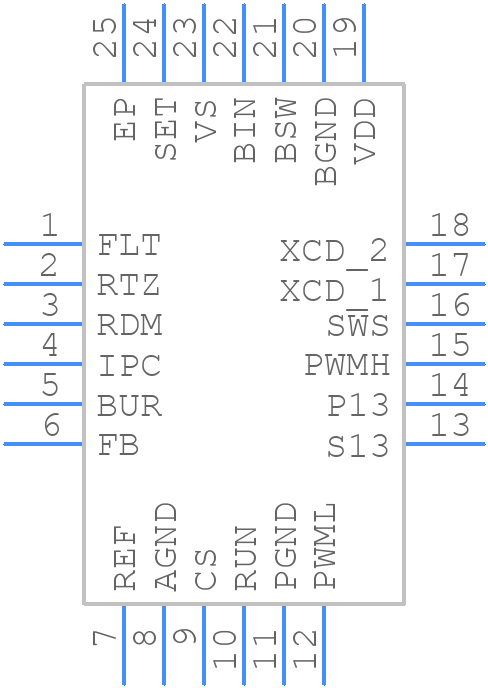

Use the download button to access the UCC28782ADRTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
