- Part Number UCC28810DR
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D
- Released Date Dec 30, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UCC28810DR Details
-
Manufacturer Part Number:
UCC28810DR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Pin Count:
8
-
Country Of Origin:
Mainland China, Mexico, Philippines, Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
UCC28810DR Frequently Asked Questions (FAQs)
-
A good PCB layout for the UCC28810DR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
-
The choice of input filter components depends on the specific application requirements, such as input voltage, current, and frequency. A good starting point is to use the recommended component values from the datasheet, and then adjust based on simulation and experimentation.
-
The UCC28810DR can deliver up to 10A of output current, but this depends on the specific application and thermal conditions. It's essential to ensure proper thermal management and heat sinking to achieve the maximum output current.
-
The UCC28810DR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the application requirements.
-
A good thermal management strategy for the UCC28810DR involves using a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow, and keeping the IC away from other heat sources. Additionally, using thermal interface materials and thermal pads can help improve heat transfer.
Trust Checks
Community Provided
System Verified
Community Approved
UCC28810DR Overview

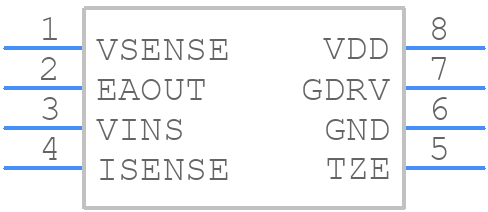

Use the download button to access the UCC28810DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
