A good PCB layout for the UCC28951QPWRQ1 involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a separate ground plane for the high-voltage and low-voltage sections.
To ensure the UCC28951QPWRQ1 operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
For thermal management, ensure good airflow around the IC, use a heat sink if necessary, and avoid blocking the airflow around the IC. Also, consider the thermal resistance of the PCB and the thermal interface material between the IC and the heat sink.
To troubleshoot issues with the UCC28951QPWRQ1, start by checking the PCB layout, ensuring that the input and output capacitors are properly placed and sized. Then, verify that the input voltage and output current are within the recommended ranges. Use an oscilloscope to check for oscillations or instability, and consult the datasheet and application notes for guidance.
The UCC28951QPWRQ1 is a high-voltage, high-current offline switcher IC with a unique combination of features, such as a wide input voltage range and high output current capability. Compared to other similar ICs, it has a higher maximum output current and a wider input voltage range, making it suitable for high-power applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28951QPWRQ1 Overview

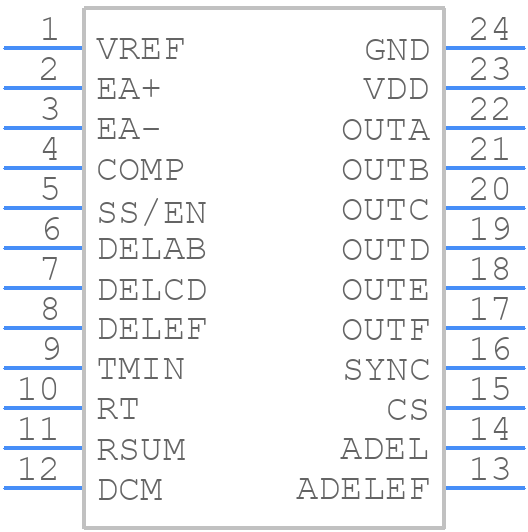

Use the download button to access the UCC28951QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
