UCC2972NG4 - Texas Instruments

Description: UCC2972NG4, Fluorescent Lamp Controller Driver, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 8-Pin PDIP

Download UCC2972NG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

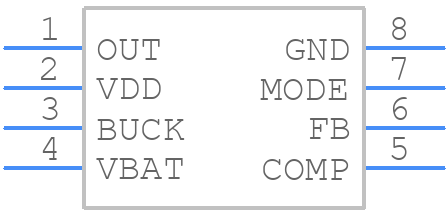

UCC2972NG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC2972NG4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom
3D Models
UCC2972NG4 - Texas Instruments - 3D model - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom

UCC2972NG4 Details

  • Manufacturer Part Number:

    UCC2972NG4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0
