Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the converter.
The UCC33420QRAQRQ1 has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal management and cooling requirements for the system to ensure reliable operation within the specified temperature range.
The UCC33420QRAQRQ1 is a commercial-grade device, and its reliability and performance may not meet the stringent requirements of high-reliability or aerospace applications. Texas Instruments offers other devices, such as the UCC33420QRAQ1, which is qualified to the Automotive AEC-Q100 standard, or other radiation-hardened devices for aerospace applications.
To troubleshoot issues with the UCC33420QRAQRQ1, start by reviewing the application circuit and ensuring it matches the recommended design. Check the input voltage, current, and frequency, as well as the output voltage and current. Use an oscilloscope to monitor the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues, and consider seeking support from Texas Instruments' technical support team if needed.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC33420QRAQRQ1 Overview

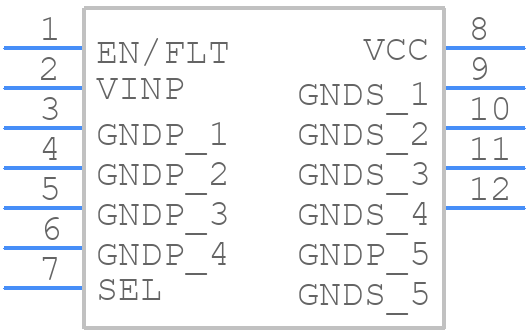

Use the download button to access the UCC33420QRAQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC33,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
