Texas Instruments provides a recommended PCB layout in the UCC33420RAQR evaluation module documentation, which includes guidelines for component placement, trace routing, and grounding. Following these guidelines can help minimize EMI and ensure reliable operation.
The input capacitor value depends on the input voltage, output voltage, and desired ripple current. A general rule of thumb is to choose a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 1.5 times the maximum input voltage. Consult the datasheet and application notes for more specific guidance.
The UCC33420RAQR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at high temperatures.
The UCC33420RAQR is a commercial-grade device, and its reliability and performance may not meet the stringent requirements of high-reliability or aerospace applications. Texas Instruments offers other devices, such as the UCC33420RHQR, which is specifically designed for high-reliability applications.
Troubleshooting issues with the UCC33420RAQR often involves analyzing the device's operating conditions, PCB layout, and component selection. Consult the datasheet, application notes, and Texas Instruments' technical support resources for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC33420RAQR Overview

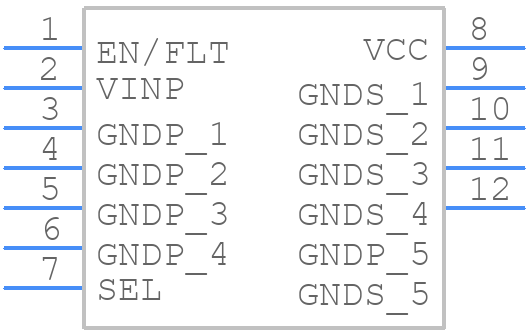

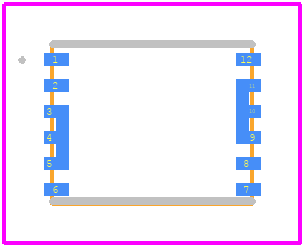

Use the download button to access the UCC33420RAQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC33,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
