SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.65 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.07 µs
Turn-on Time:
0.07 µs
Width:
3 mm
UCC37321DGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and switching frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. The application note SLUA433 provides more detailed guidance on input capacitor selection.
The maximum ambient temperature for the UCC37321DGN is 85°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating, and the application note SLUA433 provides guidance on thermal management and derating.
Yes, the UCC37321DGN is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and is also suitable for industrial and medical applications that require high reliability.
Texas Instruments provides a troubleshooting guide in the application note SLUA433, which covers common issues and their solutions. Additionally, the TI E2E community forum is a valuable resource for engineers to ask questions and get help from experts and peers.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC37321DGN Overview

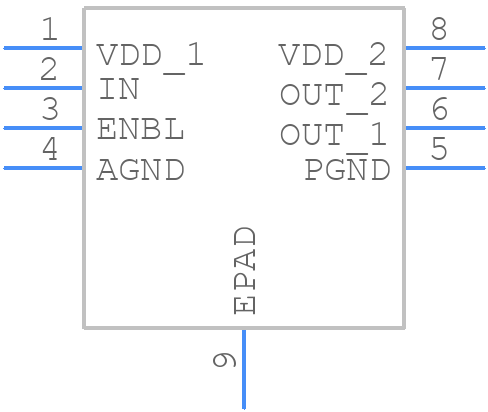

Use the download button to access the UCC37321DGN schematic symbol, PCB footprint, and 3D model.
