SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
1 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.07 µs
Turn-on Time:
0.07 µs
Width:
3 mm
UCC37322DGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA433, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the UCC37322DGNRG4.
The maximum ambient temperature for the UCC37322DGNRG4 is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to consider the thermal management of the device, including heat sinking and airflow, to ensure reliable operation within the specified temperature range.
The UCC37322DGNRG4 is rated for a maximum input voltage of 18V, but it can be used in high-voltage applications with proper design considerations. This includes using voltage dividers, resistors, or other voltage-regulation techniques to ensure the input voltage remains within the specified range. Additionally, consider the device's maximum power dissipation and thermal management to prevent overheating.
To troubleshoot issues with the UCC37322DGNRG4, start by verifying the input voltage, current, and frequency. Check the PCB layout and component values to ensure they meet the recommended specifications. Use an oscilloscope to monitor the output voltage and current waveforms, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC37322DGNRG4 Overview

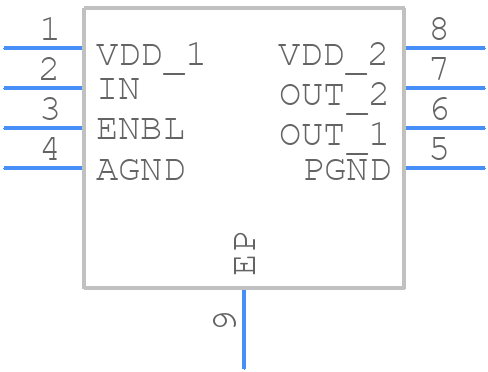

Use the download button to access the UCC37322DGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC37,
or try a keyword search, such as MOSFET Drivers
