SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.45 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.05 µs
Turn-on Time:
0.04 µs
Width:
3 mm
UCC37323DGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and switching frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. The datasheet provides more detailed guidance on capacitor selection.
The UCC37323DGN is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to consider thermal management and derating in the system design.
Yes, the UCC37323DGN is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices, and it's also suitable for use in industrial and medical applications that require high reliability.
Texas Instruments provides a troubleshooting guide in the application note SLUA624, which covers common issues and their solutions. Additionally, the datasheet provides guidance on debugging techniques, such as monitoring the device's internal signals and using oscilloscopes to analyze the waveforms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC37323DGN Overview

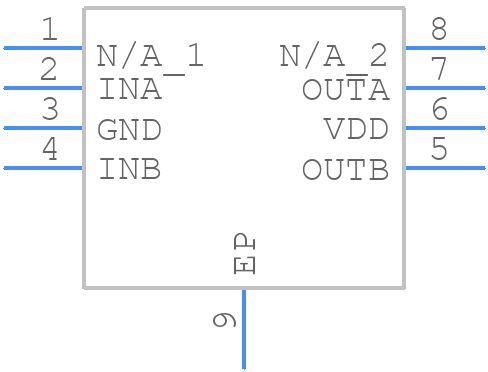

Use the download button to access the UCC37323DGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC37,
or try a keyword search, such as MOSFET Drivers
