SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.75 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.05 µs
Turn-on Time:
0.04 µs
Width:
3 mm
UCC37324DGN Frequently Asked Questions (FAQs)
A good PCB layout for the UCC37324DGN involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
Proper thermal management involves providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. TI provides thermal resistance values in the datasheet to aid in thermal design.
When selecting capacitors, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). TI recommends using low-ESR capacitors with a voltage rating above the maximum input voltage and a capacitance value that meets the required ripple current rating.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal management. Use oscilloscopes and thermal imaging cameras to identify issues. Consult TI's application notes and technical support resources for guidance.
Operating the UCC37324DGN at high ambient temperatures can reduce its reliability and lifespan. Ensure proper thermal management, and consider derating the device's output current and voltage according to the datasheet's thermal derating curves.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC37324DGN Overview

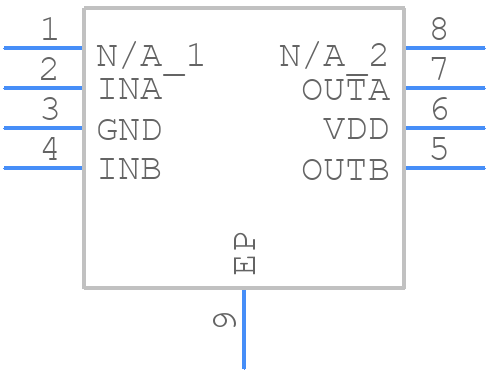

Use the download button to access the UCC37324DGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC37,
or try a keyword search, such as MOSFET Drivers
