The UCC3808N-1 is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power stage, using short and wide traces for the high-current paths, and separating the analog and power grounds. A good layout practice is to use a star-ground configuration and to minimize the loop area of the high-frequency currents.
The choice of external components, such as the input filter capacitors, output filter inductors, and feedback resistors, depends on the specific application requirements. TI provides a set of recommended component values in the datasheet, but engineers should consider factors such as the input voltage range, output voltage, and switching frequency when selecting components. Additionally, simulation tools and online calculators can be used to optimize the component values for the specific design.
The maximum junction temperature for the UCC3808N-1 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan for the device. Engineers should consider the thermal design and heat sinking requirements to keep the junction temperature within the recommended range.
Yes, the UCC3808N-1 can be used in a synchronous rectification topology. The device has a built-in synchronous rectifier driver, which can be used to drive an external MOSFET or diode. However, engineers should ensure that the synchronous rectifier is properly sized and configured to handle the output current and voltage requirements.
Troubleshooting issues with the UCC3808N-1 requires a systematic approach. Engineers should start by verifying the power stage design and layout, checking for proper component values and placement. Next, they should check the input and output voltage waveforms, as well as the current waveforms, to identify any anomalies. TI also provides a set of troubleshooting guidelines and application notes that can help engineers identify and resolve common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3808N-1 Overview

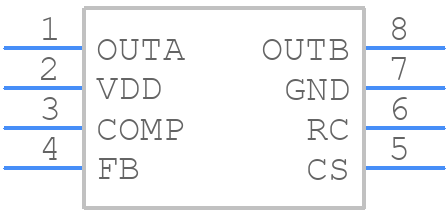

Use the download button to access the UCC3808N-1 schematic symbol, PCB footprint, and 3D model.
