UCC384DPTR-12 - Texas Instruments

Description: LDO Regulator Neg -12V 0.5A 8-Pin SOIC T/R

Download UCC384DPTR-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

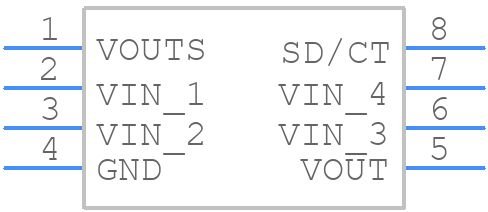

UCC384DPTR-12 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC384DPTR-12 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
UCC384DPTR-12 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

UCC384DPTR-12 Details

  • Manufacturer Part Number:

    UCC384DPTR-12

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.25 V

  • Input Voltage Absolute-Max:

    16 V

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    12.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.036%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Operating Temperature-Max:

    70 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    12.24 V

  • Output Voltage1-Min:

    11.64 V

  • Output Voltage1-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    3.9 mm
