Texas Instruments provides a recommended PCB layout in the UCC3884D datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the power traces short and wide, using a solid ground plane, and minimizing loop areas.
The selection of external components such as the input capacitor, output capacitor, and inductor depends on the specific application requirements. TI provides a component selection guide in the datasheet, and online tools such as the TI Power Stage Designer can also be used to help with component selection.
The UCC3884D has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's important to ensure proper thermal design and heat sinking to prevent overheating.
TI provides a troubleshooting guide in the datasheet, which covers common issues such as startup problems, oscillations, and overvoltage protection. Additionally, using an oscilloscope to monitor the voltage and current waveforms can help identify issues.
The UCC3884D is a commercial-grade device, but TI does offer automotive-grade and high-reliability versions of the device, such as the UCC3884D-Q1 and UCC3884D-SP, which meet specific industry standards and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3884D Overview

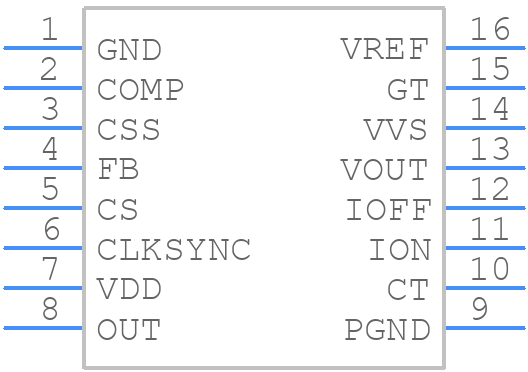

Use the download button to access the UCC3884D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC38,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
