Texas Instruments provides a recommended PCB layout in the UCC3889D datasheet and application notes. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize the device's performance. Key considerations include keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the high-current paths.
The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and output current. Texas Instruments provides guidelines for component selection in the datasheet and application notes. In general, it's recommended to use low-ESR capacitors with high ripple current ratings for the input and output capacitors. The output capacitor should also be selected based on the desired output voltage ripple and transient response.
The UCC3889D has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to maintain a safe operating temperature.
The UCC3889D has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value. Additionally, the device can be configured to latch off or auto-retry in the event of an overcurrent condition.
The recommended startup sequence for the UCC3889D involves applying the input voltage, followed by the enable signal (EN). The device will then soft-start and reach its steady-state operation. It's essential to ensure that the input voltage is stable and within the recommended range before applying the enable signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3889D Overview

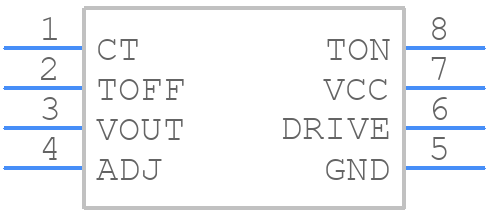

Use the download button to access the UCC3889D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC38,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
