Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22 μF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the UCC3973PW.
The UCC3973PW has a maximum ambient temperature rating of 85°C, but it's recommended to derate the device's power dissipation to ensure reliable operation. The device's thermal management is critical, and proper heat sinking and airflow are essential to maintain a safe operating temperature.
Yes, the UCC3973PW is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is manufactured using a robust process that ensures high reliability and low defect rates. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.
Troubleshooting issues with the UCC3973PW requires a systematic approach. Start by verifying the PCB layout, component selection, and soldering quality. Check the input and output voltage, current, and frequency using an oscilloscope. Consult the datasheet and application notes for guidance on potential causes and solutions. If the issue persists, consider seeking support from Texas Instruments' technical support team or a qualified design consultant.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3973PW Overview

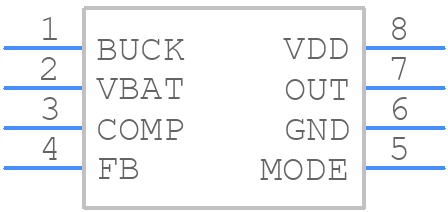

Use the download button to access the UCC3973PW schematic symbol, PCB footprint, and 3D model.
