A good PCB layout for the UCC5304DWV involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
The UCC5304DWV can operate in an ambient temperature range of -40°C to 85°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 70°C for optimal performance.
Yes, the UCC5304DWV is a high-reliability device that is suitable for use in aerospace, defense, and other high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the required standards.
To troubleshoot issues with the UCC5304DWV, start by checking the input voltage, output voltage, and current. Verify that the device is operated within the recommended specifications and that the PCB layout is correct. Use an oscilloscope to check for oscillations or other anomalies in the output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5304DWV Overview

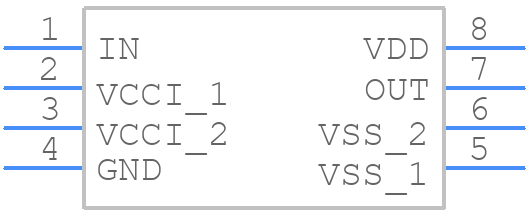

Use the download button to access the UCC5304DWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC53,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
