UCC5304DWVR - Texas Instruments

Description: Gate Drivers 4-A source, 6-A sink single-channel reinforced isolation gate driver with high noise immunity 8-SOIC -40 to 125

Download UCC5304DWVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

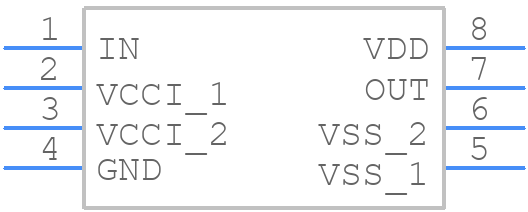

UCC5304DWVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCC5304DWVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A-1
click to zoom
3D Models
UCC5304DWVR - Texas Instruments - 3D model - Small Outline Packages - DWV0008A-1
click to zoom

UCC5304DWVR Details

  • Manufacturer Part Number:

    UCC5304DWVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-03-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    5.85 mm

UCC5304DWVR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC5304DWVR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. TI provides a recommended layout in the datasheet and application notes.
  • To ensure the UCC5304DWVR operates within its SOA, implement a soft-start circuit to limit the inrush current during startup, and use a voltage supervisor to monitor the input voltage and prevent the device from operating outside its specified range during shutdown.
  • The UCC5304DWVR has a thermal pad that must be connected to a solid ground plane or a thermal relief pattern to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the PCB. Ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • The UCC5304DWVR is qualified for automotive and industrial applications, but it's essential to review the device's operating temperature range and ensure it meets the specific requirements of your application. Consult with TI's application engineers or review the device's reliability report for more information.
  • To troubleshoot issues with the UCC5304DWVR, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement for any potential issues. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for troubleshooting guidelines and consult with TI's support team if necessary.
