Texas Instruments provides a recommended PCB layout in the UCC5310MCD datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and EMI.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the desired output voltage ripple. TI recommends using a low-ESR capacitor with a value between 10uF to 22uF.
The UCC5310MCD is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Yes, the UCC5310MCD is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability and quality standards.
To troubleshoot issues with the UCC5310MCD, start by verifying the PCB layout and component selection. Check for proper input and output filtering, and ensure that the device is operated within its recommended operating conditions. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. TI also provides application notes and technical support resources to help troubleshoot and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5310MCD Overview

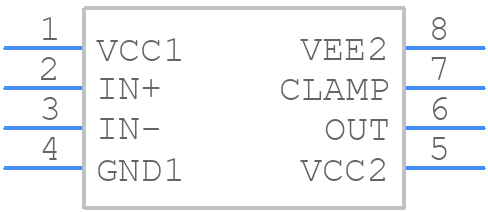

Use the download button to access the UCC5310MCD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC53,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
