A good PCB layout for the UCC5320ECDR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure stability, make sure to follow the recommended component values and PCB layout, and ensure that the input and output capacitors are of sufficient value and quality. Additionally, the device's compensation pin (COMP) should be connected to a capacitor to ground to prevent oscillation.
The UCC5320ECDR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
The UCC5320ECDR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques to keep the device within its specified operating temperature range.
To troubleshoot issues with the UCC5320ECDR, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes, or contact TI's support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5320ECDR Overview

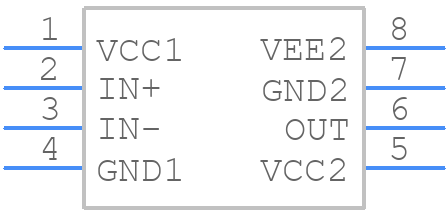

Use the download button to access the UCC5320ECDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC53,
or try a keyword search, such as MOSFET Drivers
