Texas Instruments provides a recommended PCB layout in the UCC5350MCDWV datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
The UCC5350MCDWV requires a bias voltage of 5V to 15V, and the recommended bias current is 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range.
The UCC5350MCDWV has an operating temperature range of -40°C to 125°C, but it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance and reliability.
To troubleshoot issues with the UCC5350MCDWV, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Then, check the bias voltage and current, and ensure that they are within the recommended range. Finally, use an oscilloscope to measure the output waveform and identify any signs of oscillation or instability.
Yes, the UCC5350MCDWV is suitable for use in switching power supply applications, such as DC-DC converters and power factor correction (PFC) circuits. However, ensure that the device is properly biased and that the PCB layout is optimized for high-frequency operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5350MCDWV Overview

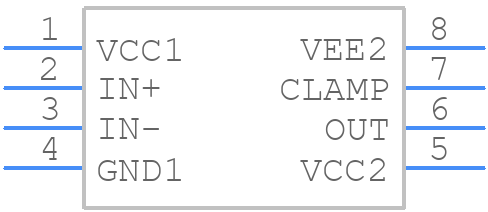

Use the download button to access the UCC5350MCDWV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC53,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
