UCC5630AMWPG4 - Texas Instruments

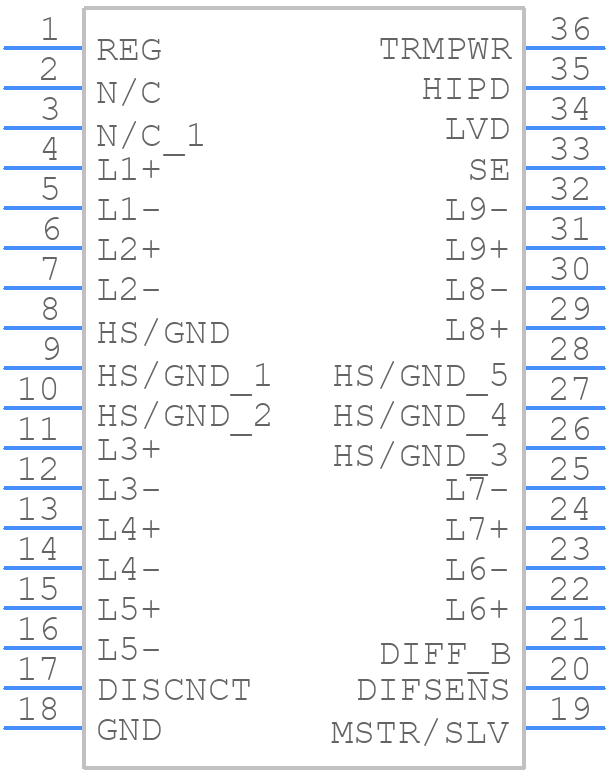

UCC5630AMWPG4 Details

• Manufacturer Part Number:

  UCC5630AMWPG4

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

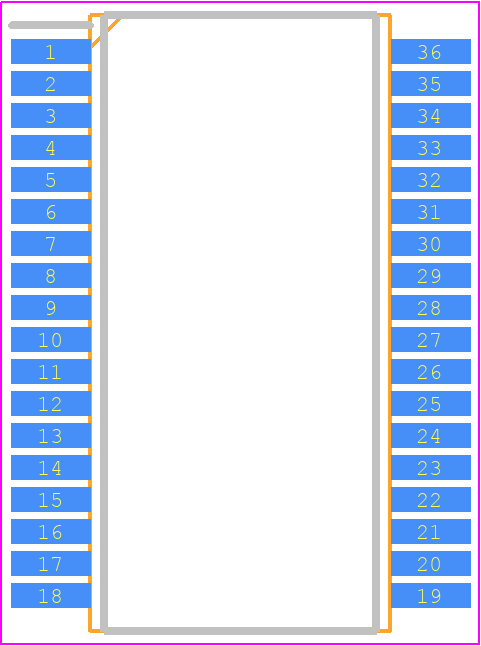

  GREEN, PLASTIC, SSOP-36

• Pin Count:

  36

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  YES

• Interface IC Type:

  SCSI BUS TERMINATOR

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e4

• Length:

  15.385 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Signal Lines:

  9

• Number of Terminals:

  36

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP36,.4,32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Pull-up Resistance-Nom:

  105 Ω

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.64 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
