Description:UCC5870 Q1 Functional Safety Compliant 15 A Isolated IGBT SiC MOSFET Gate Driver with Advanced Protection Features for Automotive Applications
A good PCB layout for the UCC5870QDWJRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure the UCC5870QDWJRQ1 operates within its SOA, implement a soft-start circuit to limit the inrush current during startup, and use a voltage supervisor to monitor the input voltage and prevent the device from operating outside its specified range.
The UCC5870QDWJRQ1 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow TI's thermal design guidelines to keep the device within its recommended operating temperature range.
To troubleshoot issues with the UCC5870QDWJRQ1, use an oscilloscope to monitor the input and output waveforms, check the PCB layout for any issues, and verify that the device is operated within its specified range. TI also provides application notes and technical support to help with troubleshooting.
Yes, the UCC5870QDWJRQ1 can be used in a redundant or parallel configuration to achieve higher power levels. However, this requires careful design and layout considerations to ensure proper synchronization and current sharing between devices.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC5870QDWJRQ1 Overview

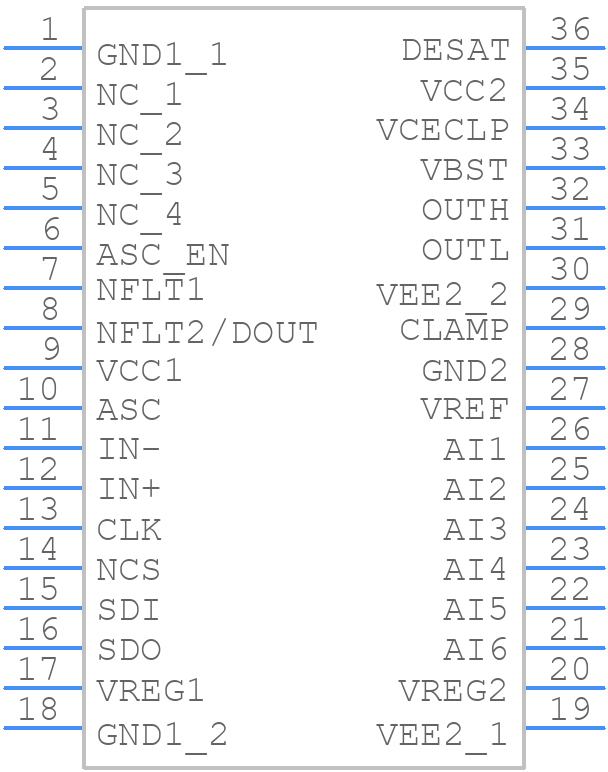

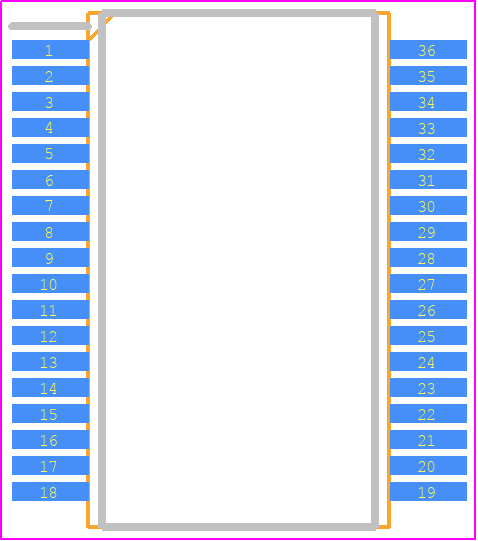

Use the download button to access the UCC5870QDWJRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC58,
or try a keyword search, such as MOSFET Drivers
