Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of the transformer depends on the specific application requirements, such as output voltage, current, and power rating. Texas Instruments provides a transformer selection guide in the application note SLUA624, which includes guidelines for selecting the right transformer and calculating the transformer's turns ratio, inductance, and core size.
The UCC5871QDWJRQ1 has a high power density, which requires proper thermal management to prevent overheating. Texas Instruments recommends using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the application note SLUA623 provides guidelines for thermal management, including PCB layout and component selection.
The UCC5871QDWJRQ1 has a built-in overcurrent protection feature, which can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. Texas Instruments provides a detailed explanation of the overcurrent protection feature in the datasheet and application notes.
The UCC5871QDWJRQ1 is a high-frequency switching device, which can generate electromagnetic interference (EMI). Texas Instruments recommends using EMI filters, such as common-mode chokes and capacitors, to reduce EMI emissions. Additionally, the application note SLUA623 provides guidelines for EMI reduction, including PCB layout and component selection.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5871QDWJRQ1 Overview

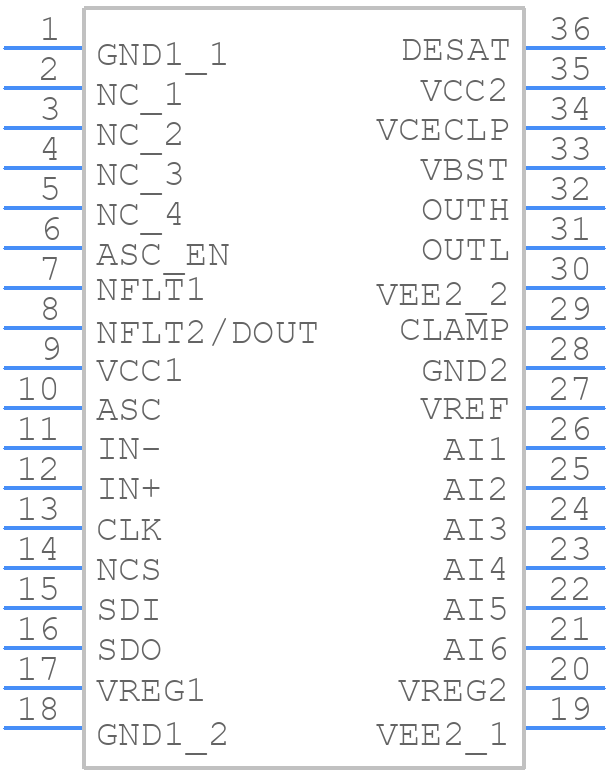

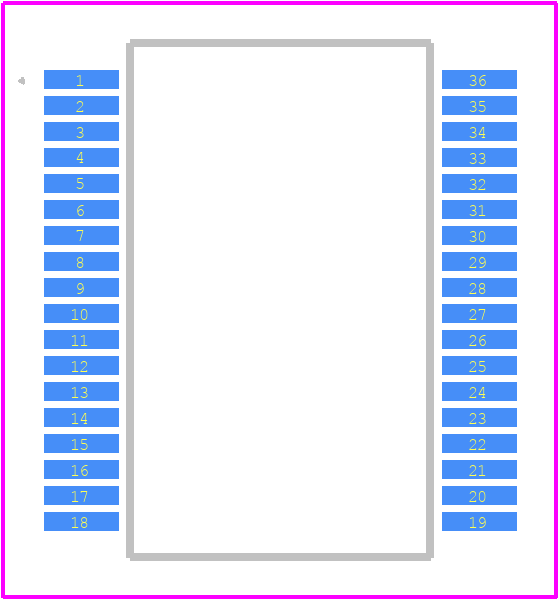

Use the download button to access the UCC5871QDWJRQ1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC58,
or try a keyword search, such as MOSFET Drivers
